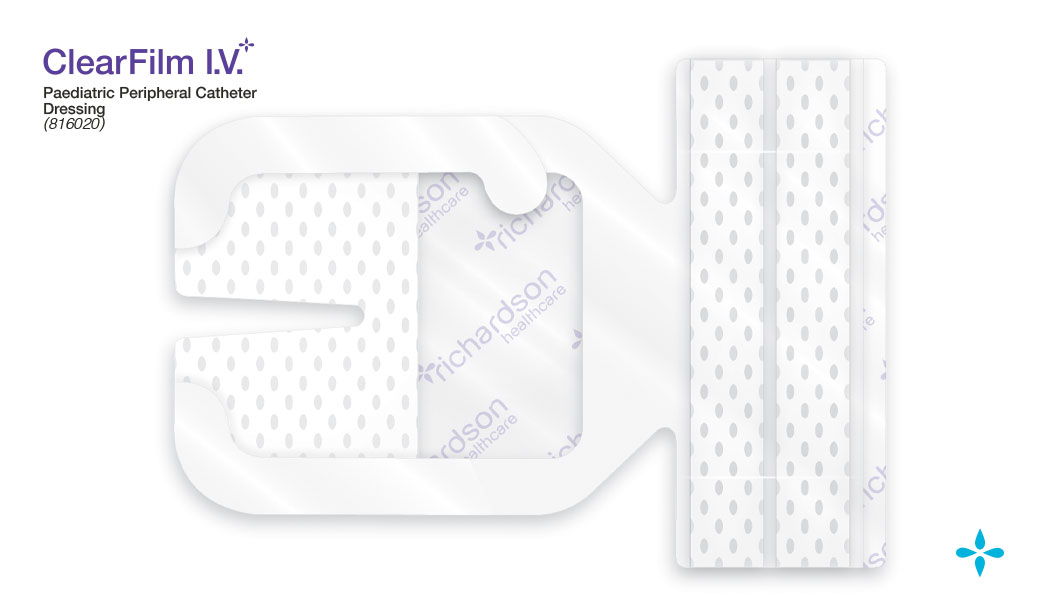

ClearFilm IV
Paediatric Peripheral Catheter Dressing – 5cm x 5.7cm

Product Description

ClearFilm IV is paediatric peripheral catheter dressing. ClearFilm IV is a transparent IV dressing coated with a layer of a gentle hypoallergenic pressure sensitive adhesive, specially formulated to secure IV sites in the presence of moisture. Frame delivery system for precise placement. Highly conformable to provide solutions for difficult catheters and IV sites.

ClearFilm IV is completely latex-free, including all aspects of the packaging. Low reflective transparent film provides high visibility of the insertion site for monitoring purposes. Promotes best practice and enhanced patient comfort with additional securement strips and date label. ClearFilm IV has MVTR 819 g/m2/24hrs (moisture vapor
transmission rate).

A date documentation label is included with all dressings within the ClearFilm IV range, promoting optimal and thorough patient care. ClearFilm IV dressings are available in a range of sizes and designs to meet all requirements. We offer deep and shallow as well as wide and narrow ports sizes and ranges are available with two soft cloth strips to anchor catheters, cannulas and infusion sites.

ClearFilm-IV - Paediatric Peripheral Catheter Dressing
ClearFilm-IV - Paediatric Peripheral Catheter Dressing
ClearFilm-IV - Paediatric Peripheral Catheter Dressing


Viral Barrier
Deep notched design forms a barrier to secondary infection and bacterial contamination.
Latex-free Zone
All aspects of the ClearFilm IV range are Latex-free.
Easy to use
Frame delivery system facilitates simple, accurate and quick application.
Low reflective film
Transparent, low reflective film window allows easy positioning and monitoring of insertion site.
ClearFilm IV waterproof design maximises fluid protection of site and minimises frequency of dressing changes.
Softer touch
Hypoallergenic adhesive is gentle to the skin whilst providing maximum securement.


1. Open package and remove sterile dressing.

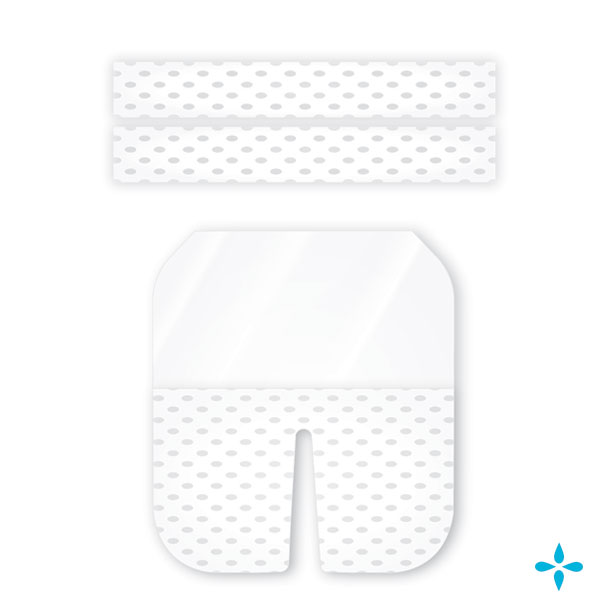

2. Pre-cut strips can be used:

  • Under the catheter wings or hub to protect the skin.
  • Over the catheter wings or hub to enhance catheter stability.
  • To secure the I.V. tubing or stabilise catheter tubing.

3. Remove backing paper and position dressing over catheter site at the desired location.

4. Ensure transparent film window sits over insertion site, and soft cloth section is over the catheter wings.

5. Do not stretch the dressing during application as tension may cause skin trauma.

6. Slowly remove the frame while firmly smoothing down the dressing edges to maximise fixation.

7. Enter the dressing change details onto the record label and fix onto dressing ensuring the window is not obscured.

ClearFilm-IV - Paediatric Peripheral Catheter Dressing

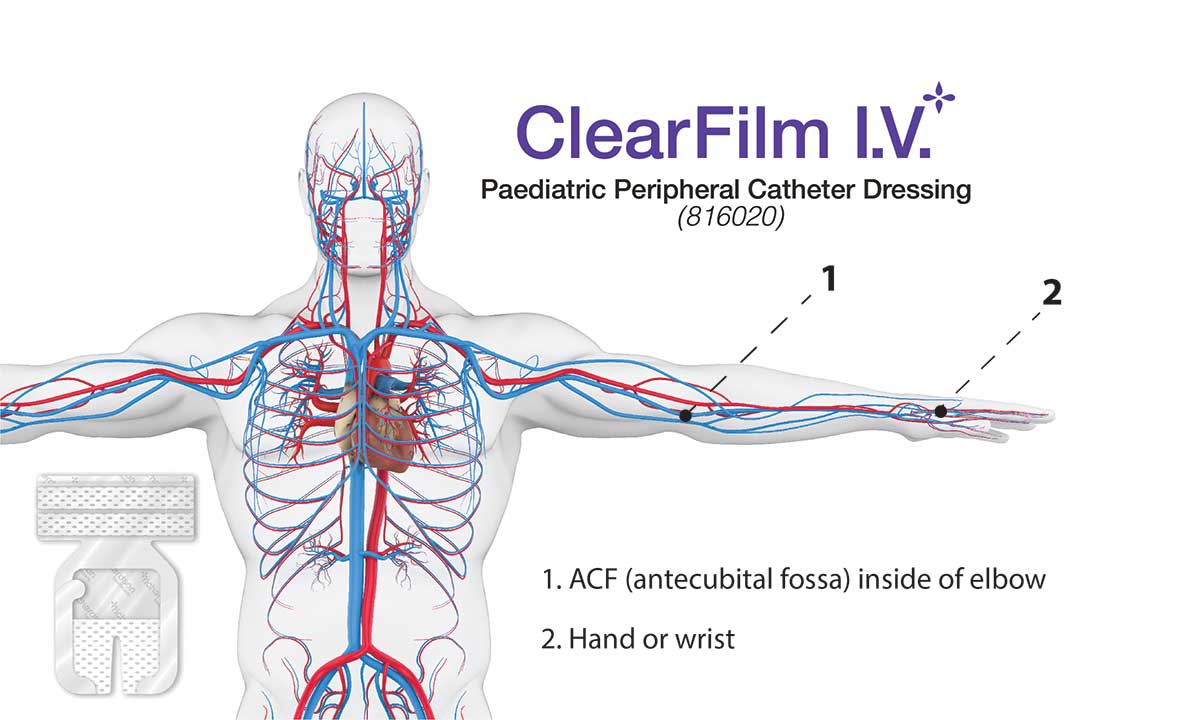

ClearFilm IV – 5cm x 5.7cm is indicated for use on:

  • Peripheral Line Catheter dressing.

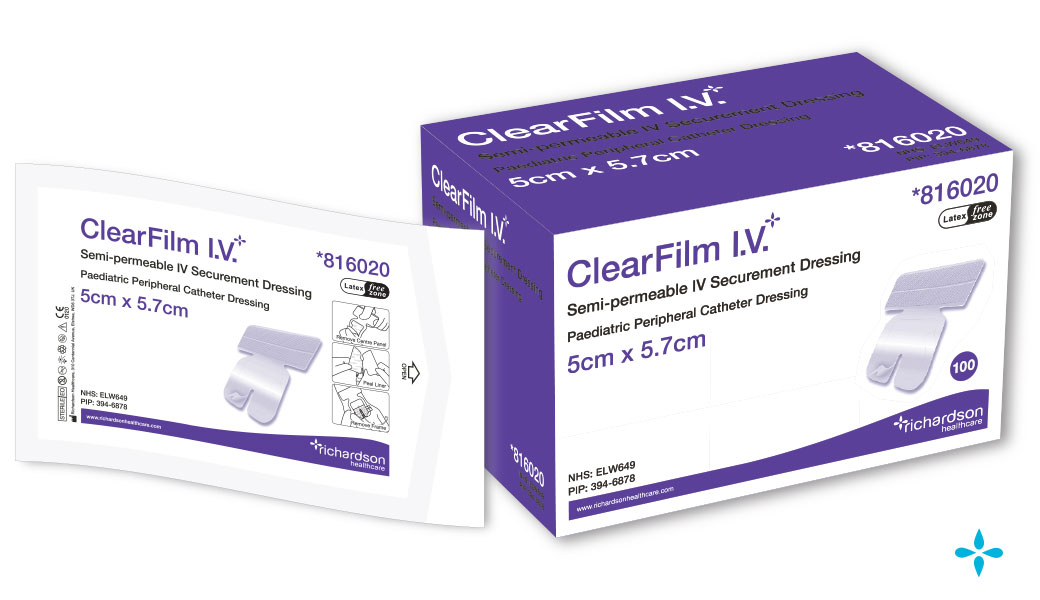

RHC Code Description PIP Code NHS Code Pack Qty
816020 5cm x 5.7cm 394-6878 ELW649 100

Recommended Products


ClearFilm-IV - Peripheral Catheter Dressing.

ClearFilm IV

ClearFilm-IV - Non Bordered Peripheral Dressing.

ClearFilm IV Pro

ClearFilm IV Pro is CVC Advanced Securement Dressing.

Please note that while every effort is made to ensure the accuracy of the content presented, it is purely for educational purposes only and is not a substitute for professional medical advice.
